Magnetic Filter Assembly

SKU: 075A-MAG-102 Category:

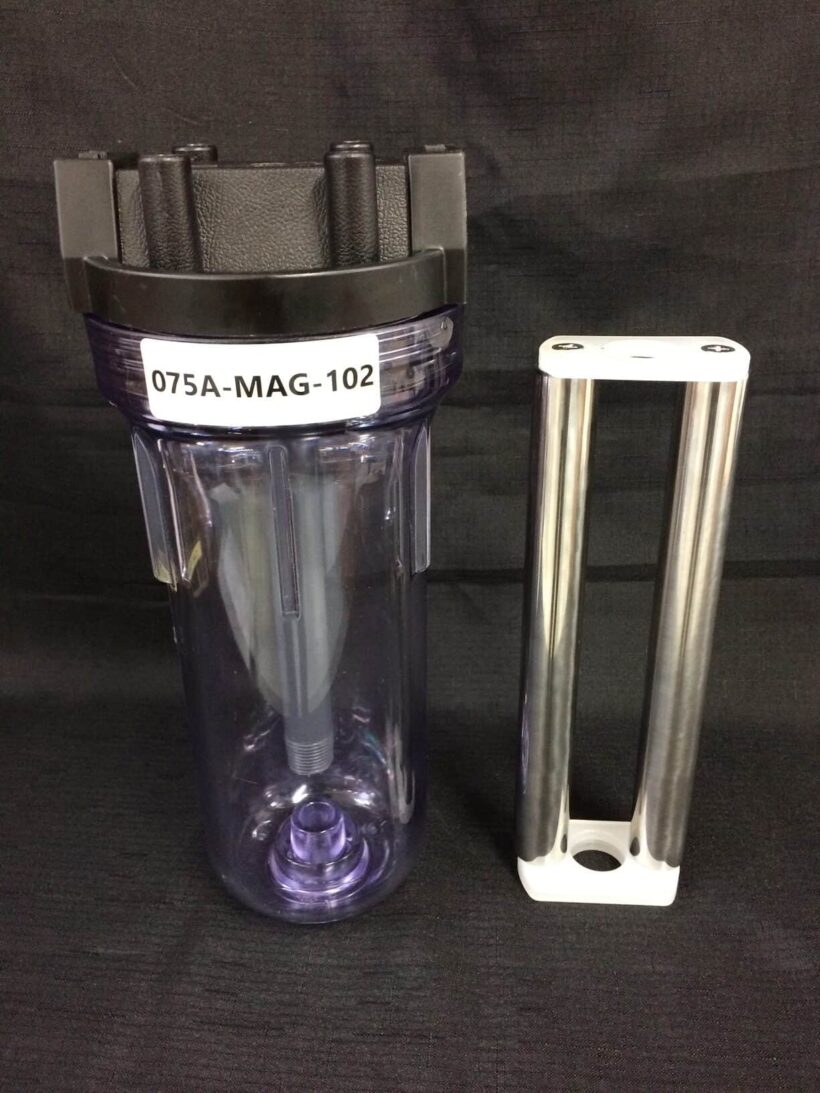

The 075A-MAG-102 inline magnetic coolant filter is an ideal solution for removing ferrous particles from coolant or oil.  The proprietary design features two 5,000 Gauss rare earth magnetic rods incorporated in a cleanable filter element package.

This unique design will fit standard housings, keeping prices at a fraction of comparable units.

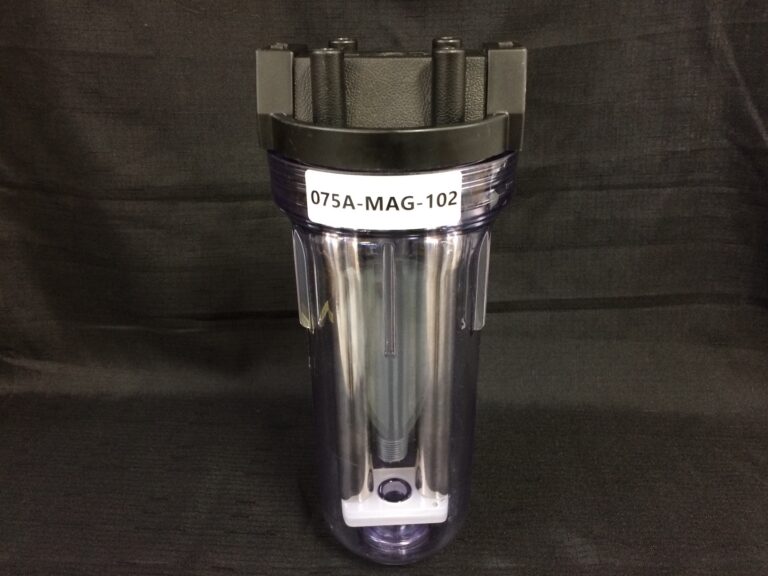

The 075A-MAG-102 features a clear bowl for visual inspection of the magnetic filter.  The assembly is capable of flow rates up to 25 GPM, and removing particles as small as 10 microns in size.

Additional information

Weight 8 lbs
Dimensions 15 × 7 × 7 in
Inlet/Outlet Ports


Materials of Construction


Maximum Pressure
