Dedicated Filtration System

SKU: PFA-0507-SPO Category:



The PFA-0507-SPO dedicated coolant filtration system can remove floating chips and fines from coolant or oil. The unit is capable of flow rates as high as 10 GPM, and can filter particles down to 1 Micron.  The PFA-0507-SPO can easily clean and maintain a typical CNC machine sump.

Benefits include preventing tool breakage and machine shutdowns, greatly extending tool life, and improving part finishes.

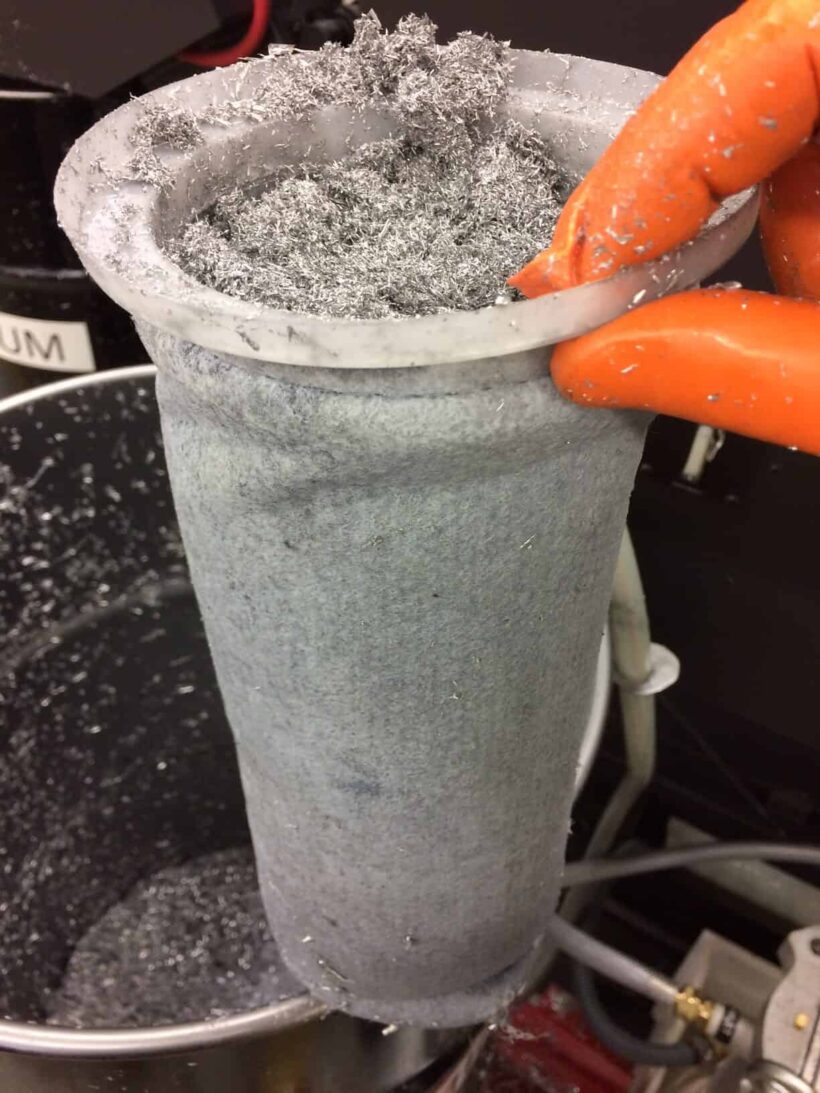

Filter assemblies utilize low-cost filter bags with extremely long life. Ideal for machining operations cutting aluminum, titanium, cast iron, plastics, or any materials that create small fines which contaminate the coolant.

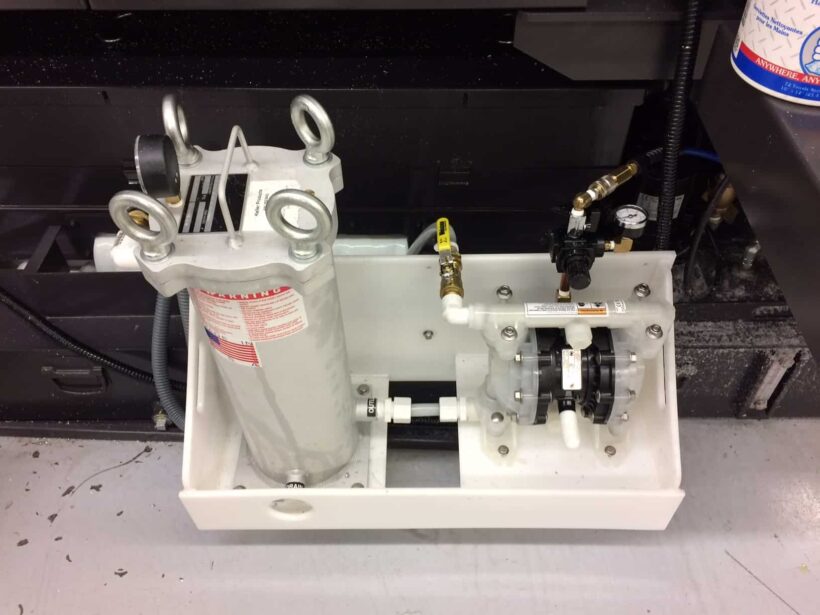

The unit employs an incredibly rugged, self-priming air diaphragm pump. The system is packaged in a compact welded plastic frame requiring minimal space to mount the unit. The system is supplied with 25 micron filter bags to start.

The PFA-0507-SPO is shipped with everything required to operate the unit, only a compressed air line is supplied by the customer.

Additional information

Compressed air requirements

2 SCFM @ 50 PSIG

Flow Rate

10 GPM
